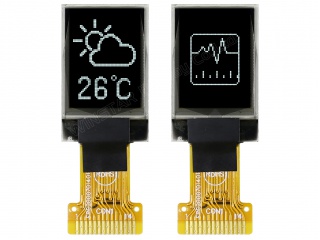

| PartNumber | WEO004864AW |
| Brand | Winstar |
| Size | 0.71 |
| Application | Wearable |
| Resolution | 48×64 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(White) |
| Backlight | self |
| Interface | I²C |
| Model | WEO004864AW |
| Diagonal Size | 0.71 inch |
| Type | PM-OLED, OLED |
| Pixel Format | 48×64 112PPI |
| Configuration | Rectangle |
| Active Area | 10.54(H)×14.7(V) mm |
| Outline Dim. | 13.9(H)×22(V) ×1.36(D) mm |
| Bezel Area | 12.4(H)×16.3(V) mm |
| Treatment | - |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Mono(White) |
| Light Source | self |
| Weight | - |
| Designed For | Wearable |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Built-in SSD1306BZ |
| Interface Type | I²C , 14 pins FPC |
| Power Supply | 3.0/7.5V (Typ.)(VDD/VCC) |
| Environment | Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C |
