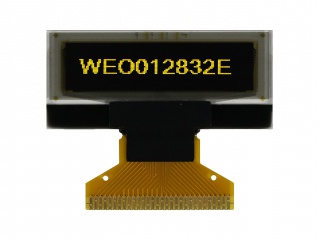

| PartNumber | WEO012832EL |
| Brand | Winstar |
| Size | 1.0 |
| Application | Handheld & PDA W |
| Resolution | 128×32 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Yellow) |
| Backlight | self |
| Interface | |
| Model | WEO012832EL |
| Diagonal Size | 1.0 inch |
| Type | PM-OLED, OLED |
| Pixel Format | 128×32 127PPI |
| Configuration | Rectangle |
| Active Area | 25.58(H)×6.38(V) mm |
| Outline Dim. | 33.4(H)×14.5(V) ×1.68(D) mm |
| Bezel Area | 27.68(H)×7.8(V) mm |
| Treatment | - |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Mono(Yellow) |
| Light Source | self |
| Weight | - |
| Designed For | Handheld & PDA Wearable Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| 3.0V (Typ.) |
