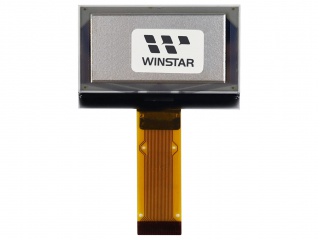

| PartNumber | WEO012864BB |
| Brand | Winstar |
| Size | 1.54 |
| Application | Handheld & PDA Instr |
| Resolution | 128×64 |
| Composition | PM-OLED , OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | |
| Diagonal Size | 1.54 inch |
| Pixel Format | 128×64 92PPI |
| Active Area | 35.056(H)×17.52(V) mm |
| Bezel Area | 37.056(H)×19.52(V) mm |
| View Direction | Symmetry |
| Viewing Angle | - |
| Support Color | Mono(Blue) |
| Weight | - |
| Frame Rate | - |
| Model | WEO012864BB |
| Type | PM-OLED , OLED |
| Configuration | Rectangle |
| Outline Dim. | 42.24(H)×29.14(V) mm |
| Treatment | - |
| Response Time | - |
| Operating Mode | - |
| Light Source | self |
| Designed For | Handheld & PDA Instruments & Meters Comm Device Home Appliance Healthcare |
| Touch Panel | Without |
