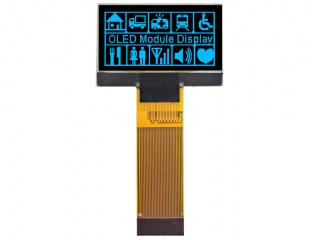

| PartNumber | WEO012864FS |
| Brand | Winstar |
| Size | 1.6 |
| Application | Handheld & PDA Instruments & Meters |
| Resolution | 128×64, 89PPI |
| Composition | PM-OLED , OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | 8-bit |
| Panel Brand | Winstar |
| Panel Size | 1.6" |
| Display Area | 36.45(W)×18.21(H) mm |
| Outline Size | 41.8(W)×27.9(H) ×2(D) mm |
| Viewing Angle | - |
| Best View on | Symmetry |
| Display Colors | Mono(Blue) |
| Frequency | - |
| Driver IC | COG Built-in SSD1325Z2 |
| Panel Weight | - |
| Signal Interface | 8-bit 6800/8080 parallel, 4-wire SPI , 30 pins FPC |
| Input Voltage | 3.0V (Typ.) |
| Panel Model | WEO012864FS |
| Panel Type | PM-OLED , OLED |
| Pixel Format | Rectangle |
| Bezel Opening | 38.45(W)×20.2(H) mm |
| Surface | - |
| Display Mode | - |
| Response Time | - |
| Lamp Type | self |
| Touch Screen | Without |
