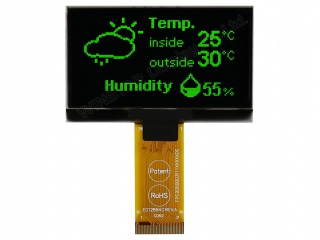

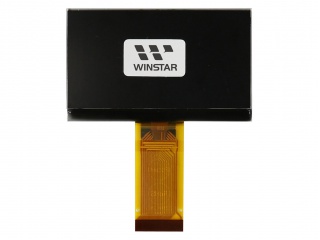

| PartNumber | WEO012864GG |
| Brand | Winstar |
| Size | 2.4 |
| Application | Handheld & PDA I |
| Resolution | 128×64 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Green) |
| Backlight | self |
| Interface | 8-bit |
| Model | WEO012864GG |
| Diagonal Size | 2.4 inch |
| Type | PM-OLED, OLED |
| Pixel Format | 128×64 59PPI |
| Configuration | Rectangle |
| Active Area | 55.01(H)×27.49(V) mm |
| Outline Dim. | 60.5(H)×37(V) ×2.15(D) mm |
| Bezel Area | 57.01(H)×28.9(V) mm |
| Treatment | - |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Mono(Green) |
| Light Source | self |
| Weight | - |
| Designed For | Handheld & PDA Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Built-in SSD1309ZC |
| Interface Type | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 30 pins FPC |
| Power Supply | 3.0V (Typ.) |
