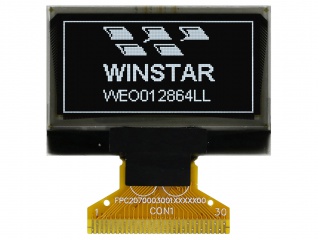

| PartNumber | WEO012864LW |
| Brand | Winstar |
| Size | 1.28 |
| Application | Handheld & PDA Instr |
| Resolution | 128×64 |
| Composition | OLED , PM-OLED |
| Brightness | |
| CR | |
| Colors | Mono(White) |
| Backlight | self |
| Interface | 8-bit |
| Manufacturer | Winstar |
| Screen Size | 1.28 inch |
| Pixel Number | 128×64 111PPI |
| Active Area(mm) | 29.42 × 14.2 (H×V) |
| Bezel Area(mm) | 31.32 × 15.62 (H×V) |
| Viewing Angle | - |
| Good View at | Symmetry |
| Color Depth | Mono(White) |
| Mass | - |
| Refresh Rate | - |
| Driver IC list | Suggest COG SH1106G |
| Signal Type | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 29 pins FPC |
| Voltage Supply | 3.0V (Typ.) |
| Model Name | WEO012864LW |
| Screen Type | OLED , PM-OLED |
| Arrangement | Rectangle |
| Outline(mm) | 34.5 × 23 × 1.95 (H×V×D) |
| Treatment | - |
| Response | - |
| Work Mode | - |
| Used for | Handheld & PDA Instruments & Meters |
| Touchscreen | Without |
