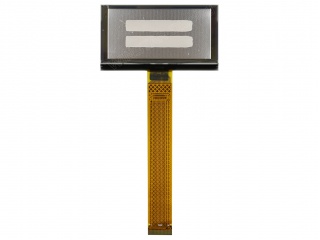

| PartNumber | WEO012864QS |
| Brand | Winstar |
| Size | 2.7 |
| Application | Home Appliance Handh |
| Resolution | 128×64 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | |
| Model | WEO012864QS |
| Diagonal Size | 2.7 inch |
| Type | PM-OLED, OLED |
| Pixel Format | 128×64 52PPI |
| Configuration | Rectangle |
| Active Area | 61.41(H)×30.69(V) mm |
| Outline Dim. | 73(H)×41.86(V) ×2.15(D) mm |
| Bezel Area | 63.41(H)×32.69(V) mm |
| Treatment | - |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Mono(Blue) |
| Light Source | self |
| Weight | - |
| Designed For | Home Appliance Handheld & PDA Healthcare Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C |
