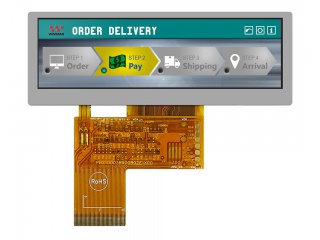

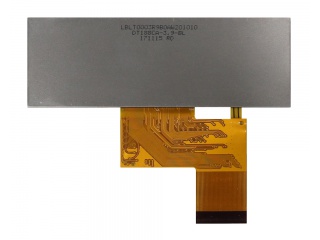

| PartNumber | WF39BTZASDNN0 |
| Brand | Winstar |
| Size | 3.9 |
| Application | Industrial Stretched Bar LCD |
| Resolution | 480×128(RGB), 128PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | Parallel |
| Panel Brand | Winstar |
| Panel Model | WF39BTZASDNN0 |
| Panel Size | 3.9" (1/2 cut of 4.3") |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 95.04(W)×25.34(H) mm |
| Bezel Opening | 97.04(W)×27.34(H) mm |
| Outline Size | 105.5(W)×37(H) ×3.25(D) mm |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 75/75/75/75 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | - |
| Display Colors | 16.7M |
| Lamp Type | WLED , Without Driver |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
