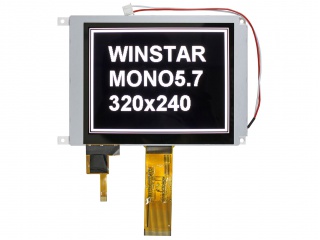

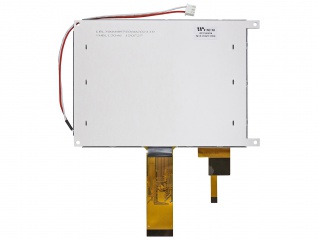

| PartNumber | WF57STIACDNG0 |
| Brand | Winstar |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 800:1 |
| Colors | Grayscale |
| Backlight | WLED |
| Interface | 8/16-bit |
| Diagonal Size | 5.7 inch |
| Pixel Format | 320×240 [QVGA] 70PPI |
| Active Area | 115.2(H)×86.4(V) mm |
| Bezel Area | 117.9(H)×89.1(V) mm |
| Luminance | 800 cd/m² (Typ.) |
| View Direction | 12 o'clock |
| Viewing Angle | - |
| Support Color | Grayscale |
| Weight | - |
| Frame Rate | - |
| Interface Type | 8/16-bit 6800/8080 parallel, 3/4-wire SPI , 22 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Model | WF57STIACDNG0 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | Rectangle |
| Outline Dim. | 160(H)×109(V) ×9.24(D) mm |
| Treatment | Glare (Haze 0%) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | - |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED , W/O Driver |
| Designed For | Industrial |
| Touch Panel | PCAP |
