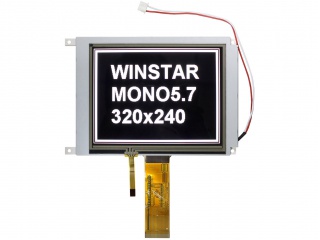

| PartNumber | WF57STIACDNT0 |
| Brand | Winstar |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | Grayscale |
| Backlight | WLED , No Driver |
| Interface | 8/16-bit |
| Manufacturer | Winstar |
| Model Name | WF57STIACDNT0 |
| Screen Size | 5.7 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 320×240 (QVGA) 70PPI |
| Arrangement | Rectangle |
| Active Area(mm) | 115.2 × 86.4 (H×V) |
| Outline(mm) | 160 × 109 × 9 (H×V×D) |
| Bezel Area(mm) | 118.2 × 87.4 (H×V) |
| Treatment | Antiglare |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | - |
| Response | - |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | Grayscale |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | - |
| Touchscreen | 4-wire Resistive Touch |
| Signal Type | 8/16-bit 6800/8080 parallel, 3/4-wire SPI , FPC 22 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
