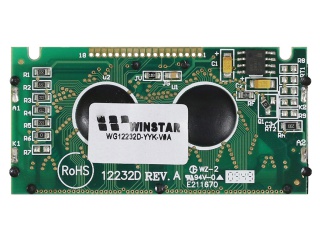

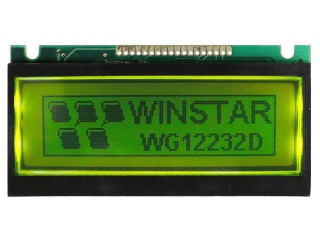

| PartNumber | WG12232D-YYH-V |
| Brand | Winstar |
| Size | 1.9 |
| Application | Industrial Instrumen |
| Resolution | 122×32 |
| Composition | LCM , STN-LCD |
| Brightness | |
| CR | 3:1 |
| Colors | Monochrome |
| Backlight | YG-LED , 100K hours , With LED Driver |
| Interface | 8-bit |
| Manufacturer | Winstar |
| Screen Size | 1.9 inch |
| Pixel Number | 122×32 67PPI |
| Active Area(mm) | 45.72 × 11.97 (H×V) |
| Bezel Area(mm) | 52.0 × 15 (H×V) |
| Luminance | - |
| Viewing Angle | 30/30/20/40 (Typ.)(CR≥2) |
| Good View at | 6 o'clock |
| Color Depth | Monochrome |
| Mass | - |
| Refresh Rate | - |
| Signal Type | 8-bit 6800 parallel , 18 pins Pad |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Model Name | WG12232D-YYH-V |
| Screen Type | LCM , STN-LCD |
| Arrangement | Rectangle |
| Outline(mm) | 59 × 29.3 × 5.5 (H×V×D) |
| Treatment | - |
| Contrast Ratio | 3 : 1 (Typ.) (TM) |
| Response | 100/100 (Typ.)(Tr/Td) ms |
| Work Mode | STN, Yellow/Green (Positive), Transflective |
| Used for | Industrial Instruments & Meters |
| Touchscreen | Without |
