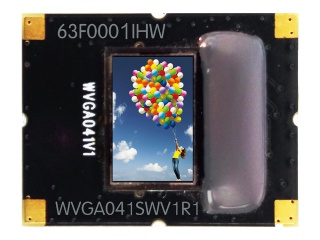

| PartNumber | WVGA041SW |
| Brand | OLiGHTEK |
| Size | 0.41 |
| Application | HMD VR AR |
| Resolution | 800×480 |
| Composition | Si-OLED, OLED |
| Brightness | |
| CR | 10000:1 |
| Colors | Grayscale(W) |
| Backlight | self |
| Interface | Parallel/Serial |
| Model | WVGA041SW |
| Diagonal Size | 0.41 inch |
| Type | Si-OLED, OLED |
| Pixel Format | 800(LCR)×480 [WVGA] 2274PPI |
| Configuration | LCR Vertical Stripe |
| Active Area | 8.9244(H)×5.3724(V) mm |
| Outline Dim. | 22(H)×17(V) mm |
| Luminance | 100 cd/m² (Typ.) |
| Contrast Ratio | 10000:1 (Min.) (TM) |
| View Direction | - |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Grayscale(W) |
| Light Source | self , 25K hours |
| Weight | 1.80g (Max.) |
| Designed For | HMD VR AR |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel/Serial , 40 pins Connector |
| Power Supply | 1.8/5.0V (Typ.)(V1/V2) |
| Environment | Operating Temperature: -40 ~ 60 °C ; Storage Temperature: -55 ~ 90 °C |
