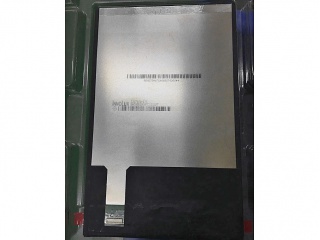

| PartNumber | ZJ070IA-17D |
| Brand | Innolux |
| Size | 7.0 |
| Application | Pad & Tablet |
| Resolution | 800(RGB)×1280, WXGA, 215PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 10S2P |
| Interface | MIPI |
| Panel Brand | Innolux |
| Panel Size | 7.0" |
| Display Area | 94.2(W)×150.72(H) mm |
| Outline Size | 103.5(W)×162.22(H) ×4.51(D) mm |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M |
| Frequency | 60Hz |
| Panel Weight | 87.0g (Max.) |
| Signal Interface | MIPI (4 data lanes) , 31 pins Connector |
| Input Voltage | 1.8/3.3V (Typ.)(VDD/VDDIO) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| Panel Model | ZJ070IA-17D |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 97.35(W)×153.82(H) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | AAS, Normally Black, Transmissive |
| Response Time | 11/9 (Typ.)(Tr/Td) |
| Lamp Type | 10S2P WLED , 15K hours , Without Driver |
| Touch Screen | Without |
