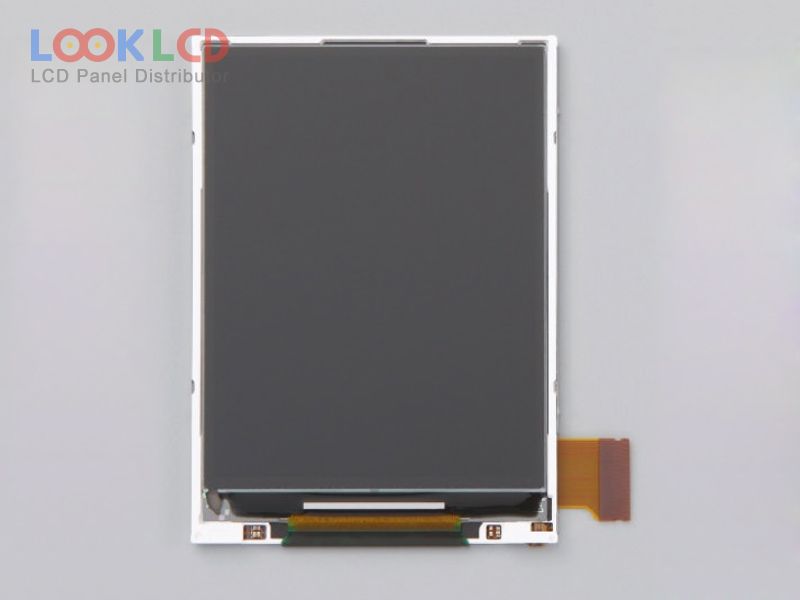

| PartNumber | 28QVF2H |
| Brand | SII |
| Size | 2.8 |
| Application | HHP |
| Resolution | 240(RGB)×320 , QVGA |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | SII |
| Panel Model | 28QVF2H |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 2.8 inch |
| Display Mode | FFS, Normally Black, Transmissive |
| Active Area | 43.2×57.6 mm |
| Outline | 49×69 mm |
| Surface | Clear, Hard coating |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193172% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 4S1PWLED |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI, 35 pins |
| Input Voltage | (1.65~3.3)/(2.5~3.3)(IOVCC/VCI) |
