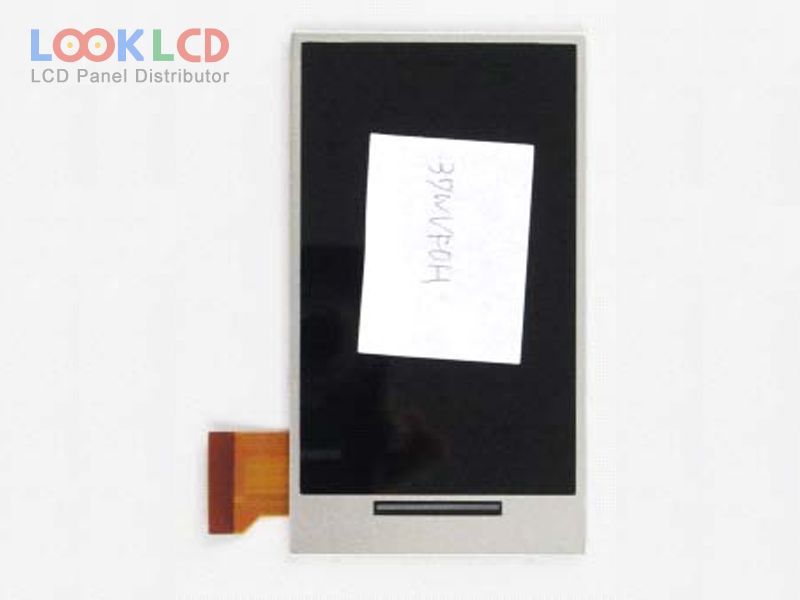

| PartNumber | 37WVF0H |
| Brand | SII |
| Size | 3.7 |
| Application | PND |
| Resolution | 480(RGB)×800 , WVGA |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | SII |
| Panel Model | 37WVF0H |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 3.7 inch |
| Display Mode | FFS, Normally Black, Transmissive |
| Active Area | 48.24×80.4 mm |
| Outline | 53.84×95.1 mm |
| Surface | Clear, Hard coating |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.2M (6-bit + Dithering), CIE193169% |
| Response Time | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 6S1PWLED |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit) + SPI, 61 pins |
| A050FW03 V0 | AUO | 5.0 | 480×272 |
| DLC0500HZG-T-8 | Other | 5.0 | 800×480 |
| EJ050NA-01G | Innolux | 5.0 | 800×480 |
| LB035Q02-TD01 | LG Display | 3.5 | 320×240 |
| LMS480JC01 | Samsung | 4.8 | 1024×600 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| LTE430WQ-F07 | Samsung | 4.3 | 480×272 |
| PW035XS1 | E Ink | 3.5 | 320×234 |
| TM047NDH01 | Tianma | 4.7 | 480×272 |
