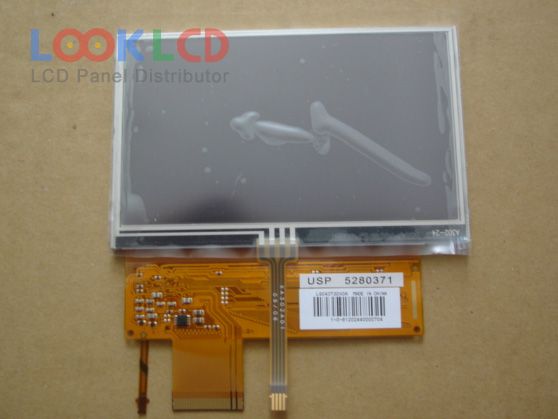

| PartNumber | LQ043T3DX0A |
| Brand | SHARP |
| Size | 4.3 |
| Application | PND |
| Resolution | 480(RGB)×272 , WQVGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LQ043T3DX0A |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 4.3 inch |
| Display Mode | ASV, Normally Black, Transmissive |
| Active Area | 95.04×53.856 mm |
| Outline | 105.5×67.2 mm |
| Surface | Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 7S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| Input Voltage | 2.5/5.0V (Typ.)(VCC/AVDD) |
