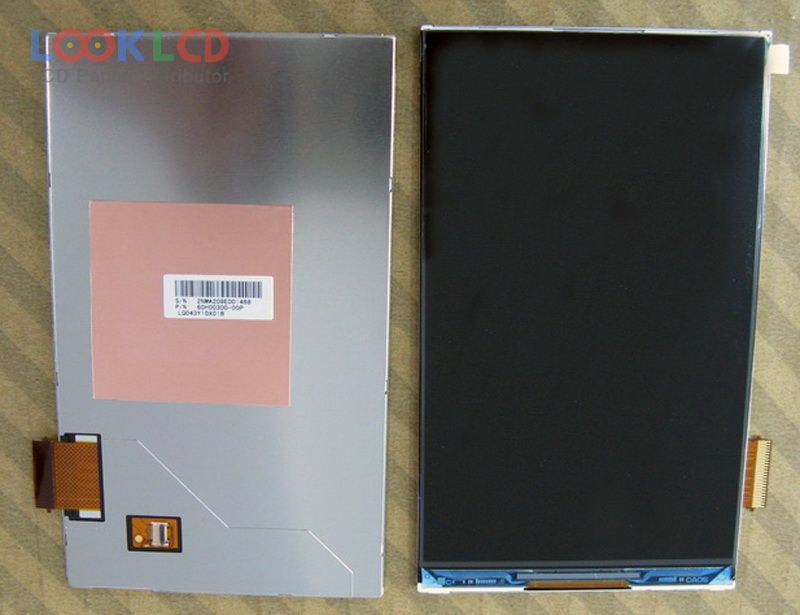

| PartNumber | LQ043Y1DX01B |
| Brand | SHARP |
| Size | 4.3 |
| Application | MPH |
| Resolution | 480(RGB)×800 , WVGA |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 900:1 |
| Colors | 65K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LQ043Y1DX01B 3 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 4.3 inch |
| Display Mode | ASV, Normally Black, Transmissive |
| Active Area | 56.16×93.6 mm |
| Outline | 62.46×105.9 mm |
| Surface | Hard coating (3H) |
| Contrast Ratio | 900:1 (Typ.) |
| Display Colors | 65K , CIE193172% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB, 45 pins |
| Input Voltage | 3.0/2.6V (Typ.)(VCI/VDDIO) |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| LQ043Y1DX01B | SHARP | 4.3 | 480×800 |
| LQ043Y1DX01D | SHARP | 4.3 | 480×800 |
| LQ043Y1DX02 | SHARP | 4.3 | 480×800 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| LS043K1SX02 | SHARP | 4.3 | 720×1280 |
| TD043MTEA1 | TPO | 4.3 | 800×480 |
| AMDM001 | Samsung | 2.6 | 240×400 |
| BTL282440-310L | BOE | 2.8 | 240×400 |
| CLAN055WA41 3XB | CPT | 5.5 | 720×1280 |
| DX08D11VM0AAA | KOE | 3.0 | 480×800 |
| H381DLN01.0 | AUO | 3.8 | 1080×1200 |
| HVA37WV1-M02 | HYDIS | 3.7 | 480×800 |
| LH450WX1-SD01 | LG Display | 4.5 | 720×1280 |
| LH470WX6-SD01 | LG Display | 4.7 | 750×1334 |
| LS055R1SX03 | SHARP | 5.5 | 1440×2560 |
| TM024HBZ26 | Tianma | 2.4 | 240×320 |
