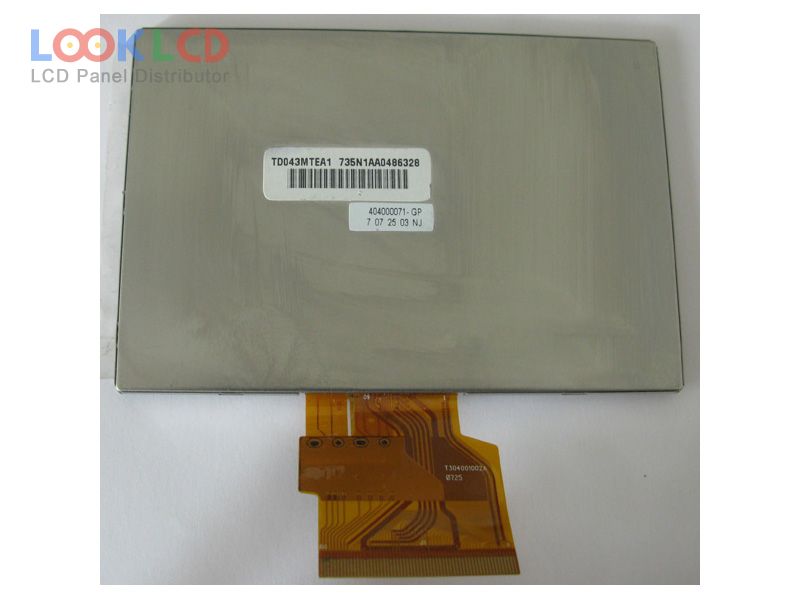

| PartNumber | TD043MTEA1 |
| Brand | TPO |
| Size | 4.3 |
| Application | |
| Resolution | 800(RGB)×480 , WVGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | TPO |
| Panel Model | TD043MTEA1 |
| Panel Type | LTPS TFT-LCD , LCM |
| Panel Size | 4.3 inch |
| Display Mode | Normally Black, Transmissive |
| Active Area | 93.6×56.16 mm |
| Outline | 100.6×68.45 mm |
| Surface | |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 60 pins |
| Input Voltage | 3.3/5.0/-5V (Typ.)(VCC/VDDP/VDDN) |
