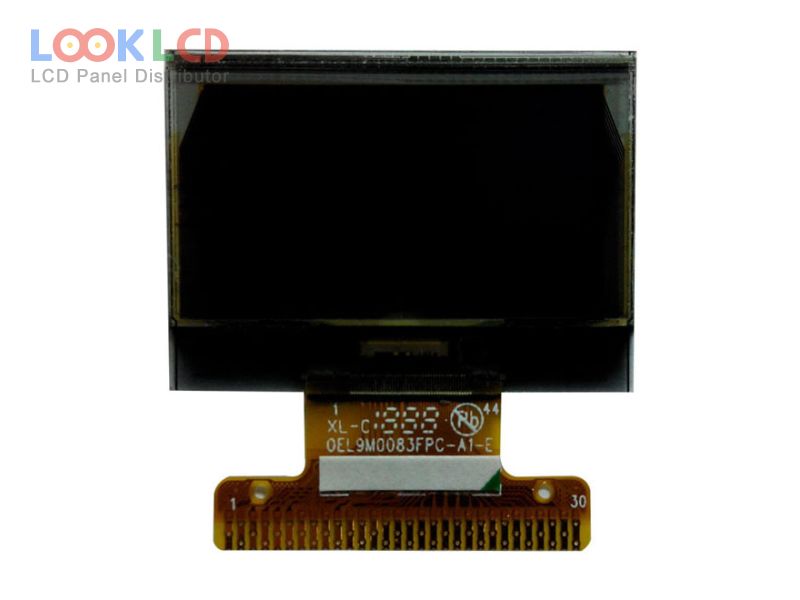

| PartNumber | OEL9M0083-R-E |
| Brand | Other |
| Size | 0.96 |
| Application | |
| Resolution | 128×64 |
| Composition | OLED |
| Brightness | |
| CR | 10000:1 |
| Colors | Mono(Red) |
| Backlight | self |
| Interface | CPU/SPI/I²C |
| Panel Brand | TRULY |
| Panel Model | OEL9M0083-R-E |
| Panel Type | PM-OLED , OLED |
| Panel Size | 0.96 inch |
| Active Area | 21.74×11.175 mm |
| Outline | 26.7×19.26×1.65 mm |
| Surface | |
| Contrast Ratio | 10000 : 1 (Min.) |
| Display Colors | Mono(Red) (1-bit) |
| Viewing Angle | 80/80/80/80 (Min.)(L/R/U/D) |
| Frequency | 100Hz |
| Driver IC | COG Built-in SH1106G |
| Signal Interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
