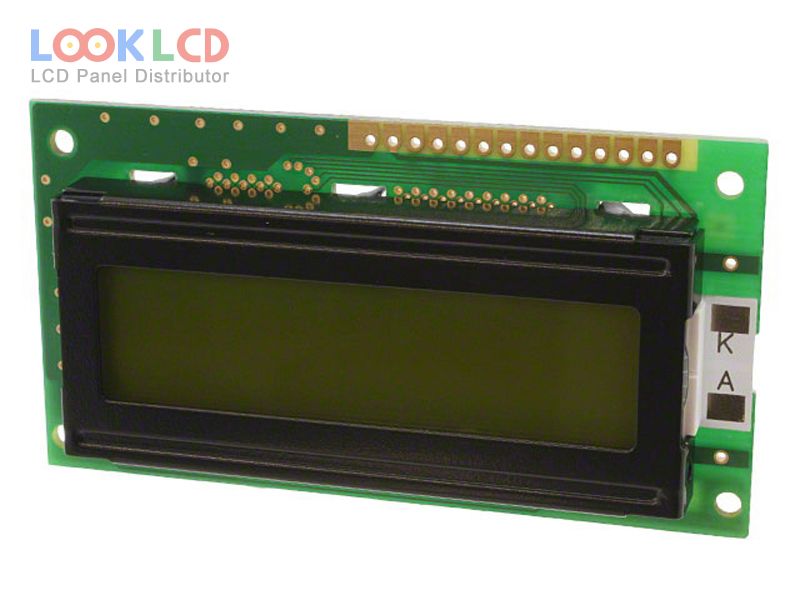

| PartNumber | DMC-16202NY-LY-BJE-BLN |
| Brand | Kyocera |
| Size | 2.3 |
| Application | |
| Resolution | 16×2 |
| Composition | LCM |
| Brightness | |
| CR | 10:1 |
| Colors | Monochrome |
| Backlight | YG-LED |
| Interface | CPU |
| Panel Brand | Kyocera |
| Panel Model | DMC-16202NY-LY-BJE-BLN |
| Panel Type | STN-LCD , LCM |
| Panel Size | 2.3 inch |
| Display Format | 16 characters × 2 lines |
| Display Mode | STN, Yellow/Green (Positive), Transmissive |
| Display Fonts | 5×8 dots |
| Character Size | 2.95×5.55 mm |
| Character Pitch | 3.55×5.95 mm |
| Active Area | 56.2×11.5 mm |
| Bezel Area | 61.0×16.0 mm |
| Outline | 84×45×15.1 mm |
| Contrast Ratio | 10:1 (Typ.) |
| Display Colors | Monochrome |
| Response Time | 100/200 (Typ.)(Tr/Td) |
| Lamp Type | 2S9PYG-LEDWithout Driver |
| Signal Interface | 8-bit parallel, 16 pins |
| Input Voltage | 5.0V (Typ.) |
