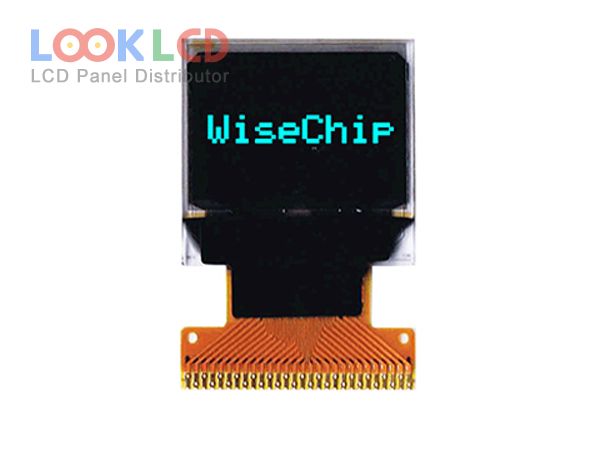

| PartNumber | UG-6448HLBEG03 |
| Brand | WiseChip |
| Size | 0.66 |
| Application | |
| Resolution | 64×48 |
| Composition | OLED |
| Brightness | 100 cd/m² (Typ.) |
| CR | 10000:1 |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | CPU/SPI/I²C |
| Panel Brand | WiseChip |
| Panel Model | UG-6448HLBEG03 |
| Panel Type | PM-OLED , OLED |
| Panel Size | 0.66 inch |
| Active Area | 13.42×10.06 mm |
| Outline | 18.46×18.1×1.55 mm |
| Surface | |
| Contrast Ratio | 10000 : 1 (Typ.) |
| Display Colors | Mono(Blue) (1-bit) |
| Viewing Angle | |
| Driver IC | COG Built-in SSD1306 |
| Signal Interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 28 pins |
| Input Voltage | 2.8/7.25V (Typ.)(VDD/VCC) |
| RoHS: |
