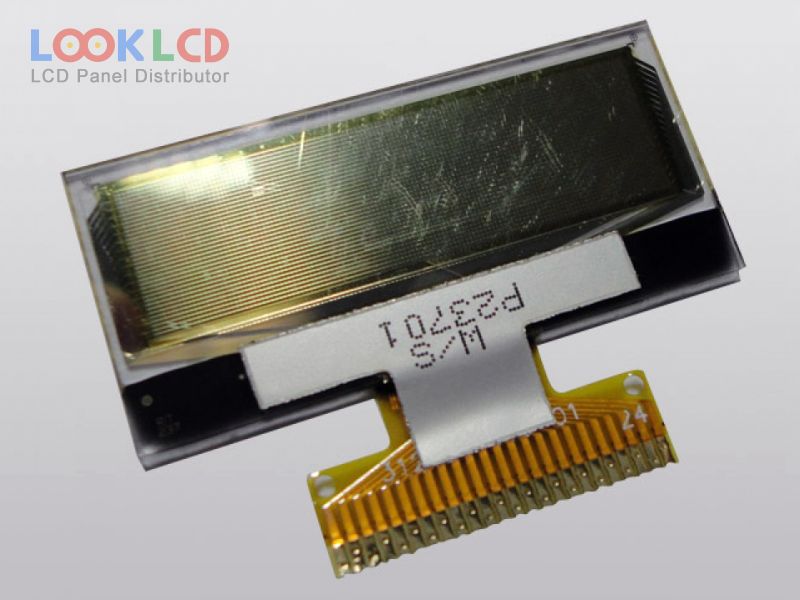

| PartNumber | RGS11128036WR014 |
| Brand | RiTdisplay |
| Size | 1.1 |
| Application | |
| Resolution | 128×36 |
| Composition | OLED |
| Brightness | 600 cd/m² (Typ.) |
| CR | 2000:1 |
| Colors | Mono(White) |
| Backlight | self |
| Interface | CPU/SPI/I²C |
| Panel Brand | RiTdisplay |
| Panel Model | RGS11128036WR014 |
| Panel Type | PM-OLED , OLED |
| Panel Size | 1.1 inch |
| Active Area | 26.86×7.54 mm |
| Outline | 31×14.3×1.1 mm |
| Surface | Without Polarizer |
| Contrast Ratio | 2000 : 1 (Min.) |
| Display Colors | Mono(White) (1-bit) |
| Viewing Angle | 80/80/80/80 (Min.)(L/R/U/D) |
| Frequency | 105Hz |
| Driver IC | COG Built-in SPD0301 |
| Signal Interface | 8-bit 6800/8080 parallel, SPI, I²C, 24 pins |
| Input Voltage | 12.0V (Typ.)(VCC) |
