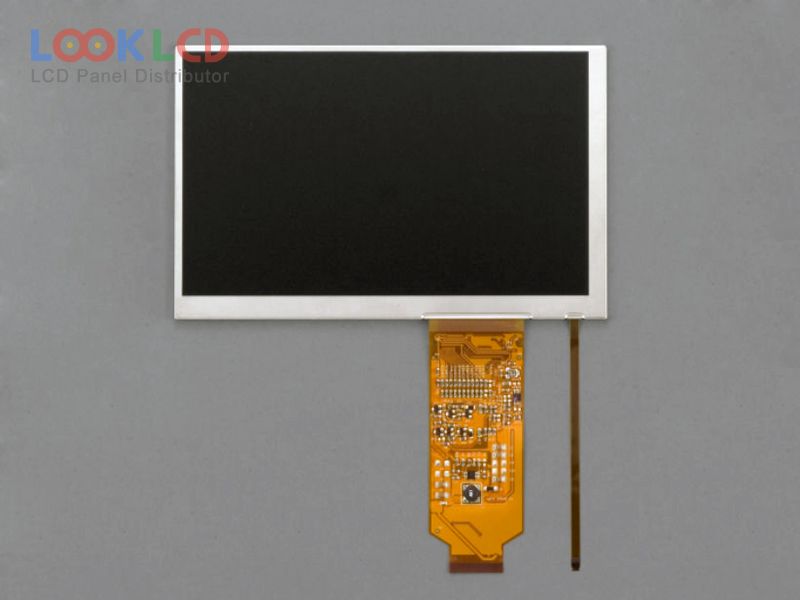

| PartNumber | 70WVW4A |
| Brand | SII |
| Size | 7.0 |
| Application | CNS |
| Resolution | 800(RGB)×480 , WVGA |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | SII |
| Panel Model | 70WVW4A |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 152.4×91.44 mm |
| Outline | 165×105.8×5.15 mm |
| Surface | Antiglare |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 7S3PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
