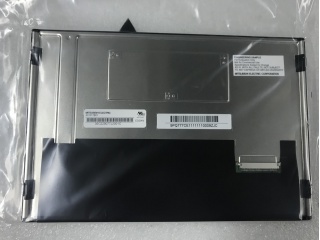

| PartNumber | AC101TB01 |
| Brand | Mitsubishi |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1280×800 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | |
| Model | AC101TB01 1 Compatible |
| Diagonal Size | 10.1 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×800 [WXGA] 149PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 216.96(H)×135.6(V) mm |
| Outline Dim. | 231(H)×153.5(V) ×10.25(D) mm |
| Bezel Area | - |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | SWV, Normally Black, Transmissive |
| Support Color | 16.2M 50% NTSC |
| Light Source | WLED , 50K hours , With LED Driver |
| Weight | - |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| AM-19201200B1TZQW-T00 | AMPIRE | 10.1 | 1920×1200 |
| B101EW01 V1 | AUO | 10.1 | 1280×720 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| LP101WX1-SLB1 | LG Display | 10.1 | 1280×800 |
| LTN101NT02-L01 | Samsung | 10.1 | 1024×600 |
| N101BGE-L21 | Innolux | 10.1 | 1366×768 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
