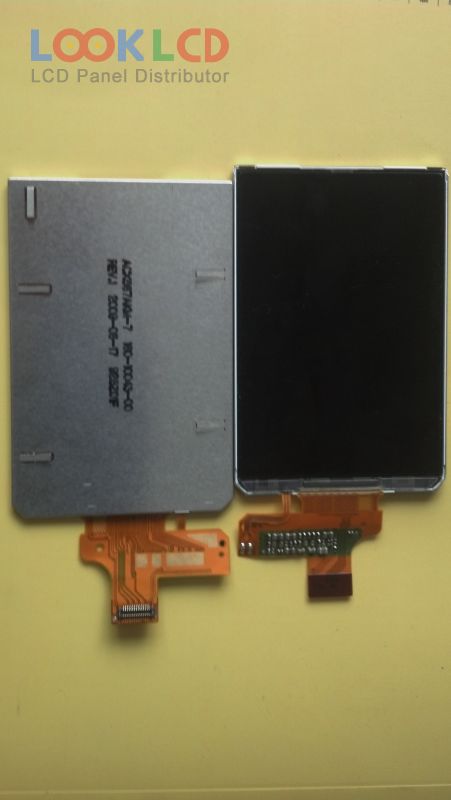

| PartNumber | ACX567AKM-7 |
| Brand | SONY |
| Size | 3.2 |
| Application | MPH |
| Resolution | 320(RGB)×480 , HVGA |
| Composition | LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Panel Brand | SONY |
| Panel Model | ACX567AKM-7 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 3.2 inch |
| Display Mode | Normally Black, Transflective |
| Active Area | 44.16×66.24 mm |
| Outline | 49.86×75.19 mm |
| Surface | |
| Contrast Ratio | 700:1 (Typ.)(Transmissive)17:1 (Typ.)(Reflective) |
| Display Colors | 16.7M (8-bit), CIE193170% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDWithout Driver |
| Input Voltage | 1.8/3.0V (Typ.)(VDD/VBATT) |
