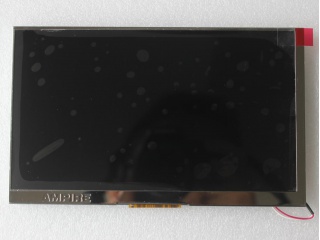

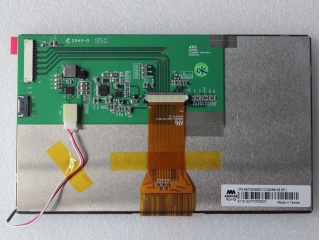

| PartNumber | AM-1024600DTZQW-A6H |
| Brand | AMPIRE |
| Size | 7.0 |
| Application | Industrial Outdoor H |
| Resolution | 1024×600 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED , 50K hours , With LED Driver |
| Interface | LVDS |
| Manufacturer | AMPIRE |
| Model Name | AM-1024600DTZQW-A6H |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 170PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 154.221 × 85.92 (H×V) |
| Outline(mm) | 164.9 × 100 (H×V×D) |
| Bezel Area(mm) | 158 × 89.7 (H×V) |
| Treatment | Antiglare |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 13/15 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Mass | - |
| Used for | Industrial Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
