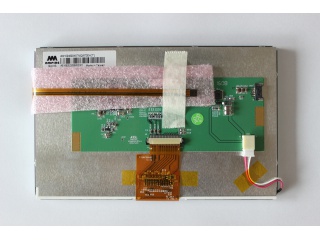

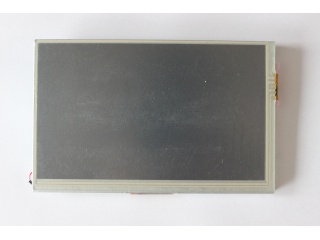

| PartNumber | AM-1024600K5TMQW-T00H |
| Brand | AMPIRE |
| Size | 7.0 |
| Application | Industrial |
| Resolution | 1024×600 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | 5S3P WLED , 30K hours , With LED Driver |
| Interface | LVDS |
| Manufacturer | AMPIRE |
| Model Name | AM-1024600K5TMQW-T00H |
| Screen Size | 7.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 169PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 153.6 × 90 (H×V) |
| Outline(mm) | 165.5 × 103 × 11.02 (H×V×D) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Response | 20/20 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M |
| Mass | TBD |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | 4-wire Resistive Touch |
| Signal Type | LVDS (1 ch, 8-bit) , Connector 20 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
