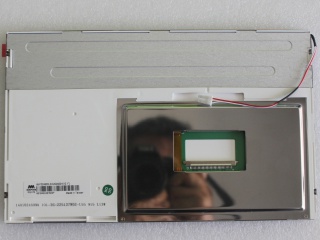

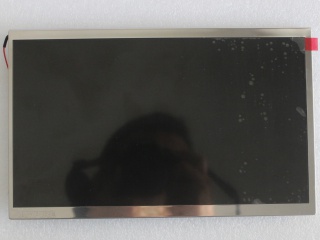

| PartNumber | AM-1024600L3HMQW-00H |
| Brand | AMPIRE |
| Size | 10.1 |
| Application | Industrial Automotiv |
| Resolution | 1024×600 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Model | AM-1024600L3HMQW-00H |
| Diagonal Size | 10.1 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1024(RGB)×600 [WSVGA] 117PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 222.72(H)×125.28(V) mm |
| Outline Dim. | 235(H)×145.8(V) ×8.85(D) mm |
| Bezel Area | - |
| Treatment | Antiglare |
| Luminance | 550 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/70/50 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 47% NTSC |
| Light Source | WLED [6S6P] , 30K hours , With LED Driver |
| Weight | TBD |
| Designed For | Industrial Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
