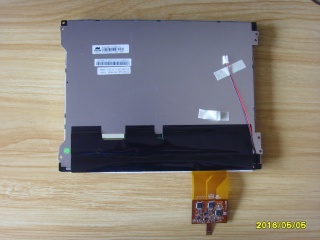

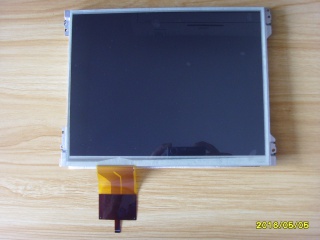

| PartNumber | AM-1024768R2TNQW-T00H |
| Brand | AMPIRE |
| Size | 12.1 |
| Application | Industrial |
| Resolution | 1024(RGB)×768, XGA, 105PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 850 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K/16.7M |
| Backlight | 10S5P |
| Interface | LVDS |
| Panel Brand | AMPIRE |
| Panel Size | 12.1" |
| Display Area | 245.76(W)×184.32(H) mm |
| Outline Size | 279(W)×209(H) ×11.2(D) mm |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | - |
| Display Colors | 262K/16.7M |
| Frequency | 60Hz |
| Panel Weight | - |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Model | AM-1024768R2TNQW-T00H |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | - |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16 (Typ.)(Tr+Td) |
| Lamp Type | 10S5P WLED , 50K hours , Without Driver |
| Touch Screen | PCAP |
