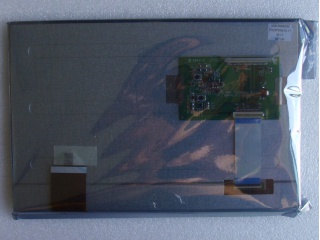

| PartNumber | AM-1280800J4TZQW-T00 |
| Brand | AMPIRE |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1280×800 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | AM-1280800J4TZQW-T00 |
| Diagonal Size | 10.1 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×800 [WXGA] 149PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 216.96(H)×135.6(V) mm |
| Outline Dim. | 231(H)×150(V) ×8.8(D) mm |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | Normally Black, Transmissive |
| Support Color | 16.7M |
| Light Source | WLED [3S11P] , 15K hours , With LED Driver |
| Weight | TBD |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | PCAP |
| Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
