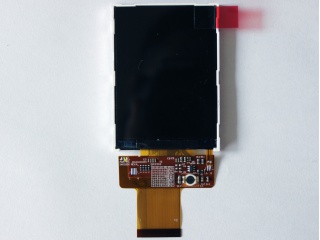

| PartNumber | AM-240320GTZQW-02H |
| Brand | AMPIRE |
| Size | 2.8 |
| Application | Mobile Phone |
| Resolution | 240×320 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 450:1 |
| Colors | 65K |
| Backlight | WLED |
| Interface | CPU/RGB/SPI |
| Model | AM-240320GTZQW-02H |
| Diagonal Size | 2.8 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 240(RGB)×320 [QVGA] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 43.2(H)×57.6(V) mm |
| Outline Dim. | 49(H)×67.5(V) ×4.9(D) mm |
| Luminance | 280 cd/m² (Typ.) |
| Contrast Ratio | 450:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | MVA, Normally Black, Transmissive |
| Support Color | 65K 69% NTSC |
| Light Source | WLED [3S2P] , With LED Driver |
| Weight | TBD |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | CPU/RGB/SPI , 40 pins FPC |
| Power Supply | 2.8V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
