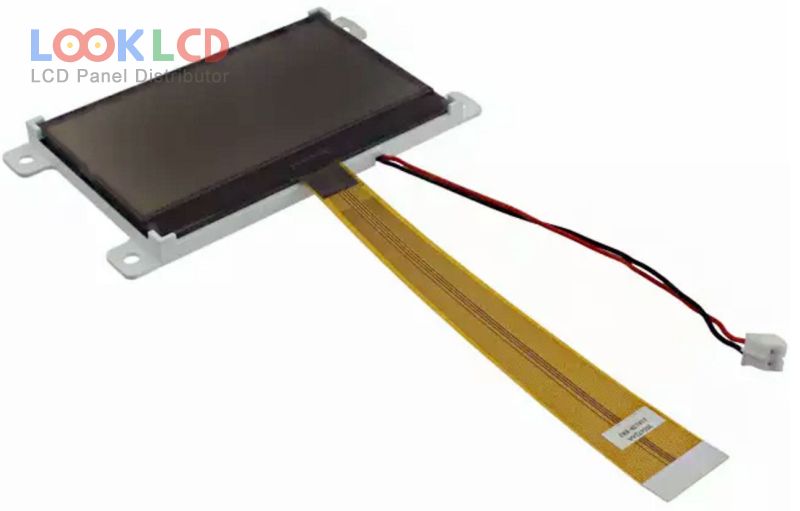

| PartNumber | F-55472GNFJ-SLW-AAN |
| Brand | Kyocera |
| Size | 2.8 |
| Application | IA |
| Resolution | 128×64 |
| Composition | LCM |
| Brightness | 60 cd/m² (Typ.) |
| CR | 5:1 |
| Colors | Monochrome |
| Backlight | WLED |
| Interface | CPU |
| Panel Brand | Kyocera |
| Panel Model | F-55472GNFJ-SLW-AAN |
| Panel Type | STN-LCD , LCM |
| Panel Size | 2.8 inch |
| Display Mode | STN, Black/White mode, Transflective |
| Active Area | 63.857×31.921 mm |
| Outline | 89.7×49.8×6 mm |
| Surface | |
| Contrast Ratio | 5:1 (Typ.)(Transmissive) |
| Display Colors | Monochrome |
| Response Time | 190/95 (Typ.)(Tr/Td) |
| Viewing Angle | |
| Lamp Type | 1S4PWLEDWithout Driver |
| Signal Interface | 8-bit 6080/8080 parallel, 30 pins |
| Input Voltage | 3.0V (Typ.) |
