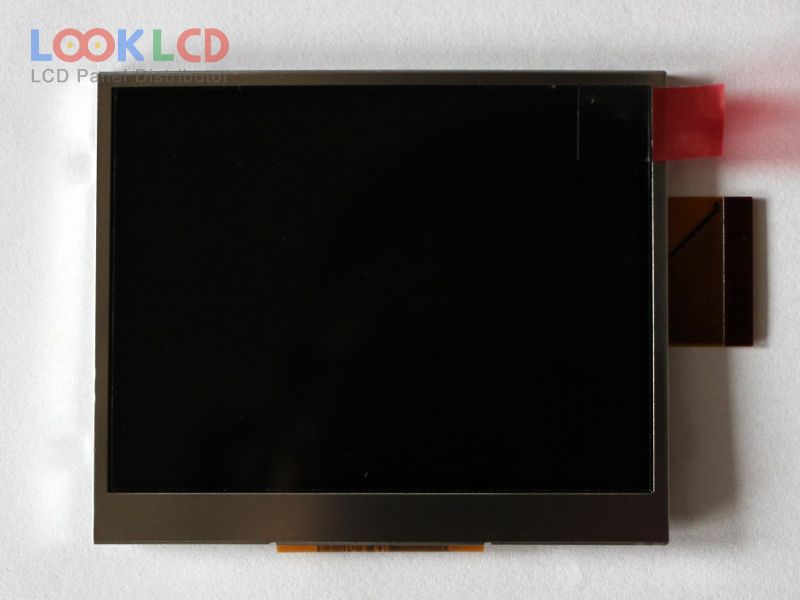

| PartNumber | AM-320240LATNQW-00H-F |
| Brand | AMPIRE |
| Size | 3.5 |
| Application | HHP |
| Resolution | 320(RGB)×240 , QVGA |
| Composition | LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | AMPIRE |
| Panel Model | AM-320240LATNQW-00H-F |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 3.5 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 70.08×52.56 mm |
| Outline | 77.8×64.5×4.7 mm |
| Surface | Antiglare |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 50 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3S2PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| A035CN02 V1 | AUO | 3.5 | 480×234 |
| AM-320240LATNQW-00H-F | AMPIRE | 3.5 | 320×240 |
| AM-320240LATNQW-T00H-F | AMPIRE | 3.5 | 320×240 |
| DLC0350BMG-1 | Other | 3.5 | 240×320 |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| PD035VX9 | E Ink | 3.5 | 480×640 |
| TM035KBH02 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
| CMD500TT10-C1 | ORTUSTECH | 3.2 | 320×240 |
| COM22H2P16ULC | ORTUSTECH | 2.2 | 240×320 |
| COM40T4M46ULX | ORTUSTECH | 4.0 | 480×800 |
| DLC0090AZG | Other | 0.91 | 80×160 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LQ040Y3DX80B | SHARP | 4.0 | 480×800 |
| TM030LDHT1 | Tianma | 3.0 | 240×400 |
