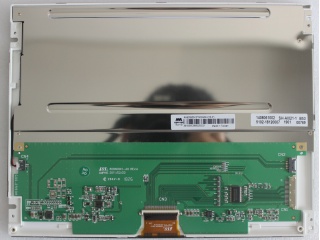

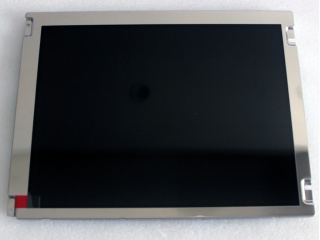

| PartNumber | AM-800600K2TMQW-04H |
| Brand | AMPIRE |
| Size | 10.4 |
| Application | Industrial |
| Resolution | 800(RGB)×600, SVGA, 96PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AMPIRE |
| Panel Size | 10.4" |
| Display Area | 211.2(W)×158.4(H) mm |
| Outline Size | 243(W)×185.6(H) mm |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 50% NTSC |
| Frequency | 60Hz |
| Panel Weight | - |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -35 ~ 85 °C |
| Panel Model | AM-800600K2TMQW-04H |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 214.8(W)×162.7(H) mm |
| Surface | - |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5/15 (Typ.)(Tr/Td) |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Touch Screen | Without |
