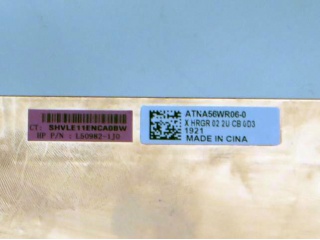

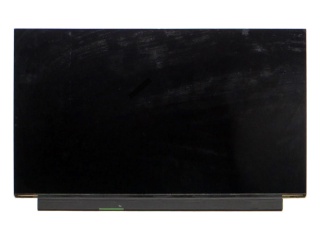

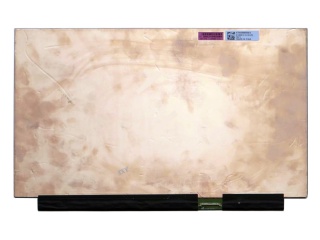

| PartNumber | ATNA56WR06-0 |
| Brand | SAMSUNG |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 3840(RGB)×2160, UHD, 283PPI |
| Composition | AM-OLED, OLED |
| Brightness | 440 cd/m² (Typ.) |
| CR | 100000:1 |
| Colors | 1.06B |
| Backlight | self |
| Interface | eDP |
| Panel Brand | SAMSUNG |
| Panel Model | ATNA56WR06-0 |
| Panel Size | 15.6" |
| Panel Type | AM-OLED, OLED |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.218(W)×193.622(H) mm |
| Bezel Opening | - |
| Outline Size | 348.218(W)×215.572(H) ×2.2(D) mm |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 100000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | 1 (Typ.)(Tr+Tf) |
| Display Colors | 1.06B 100% DCI-P3 |
| Lamp Type | self |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C |
