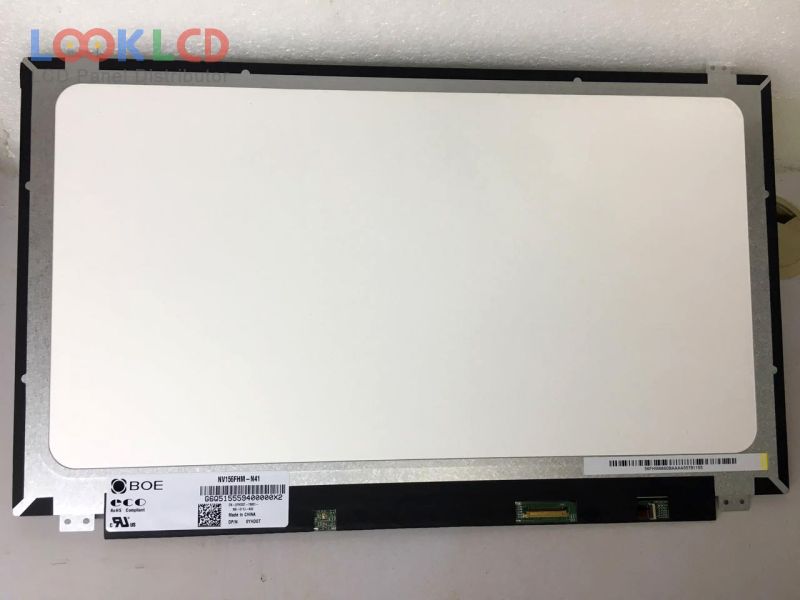

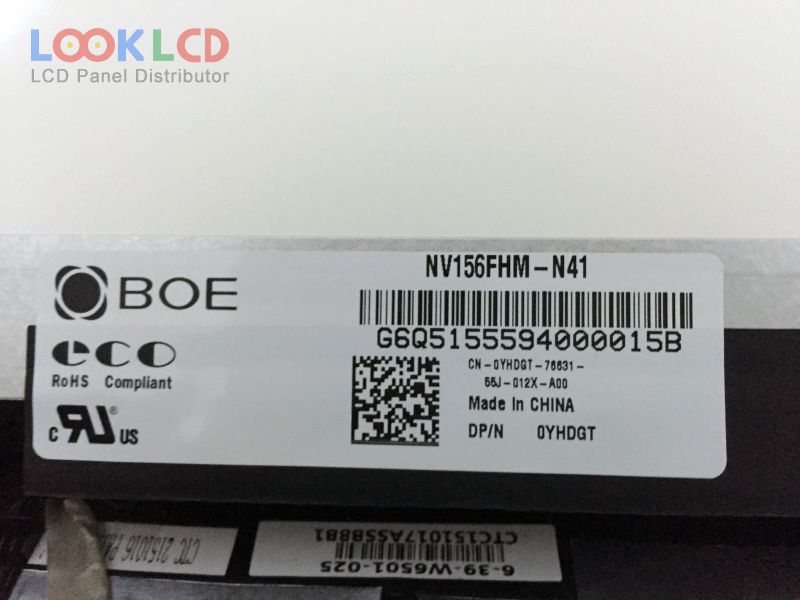

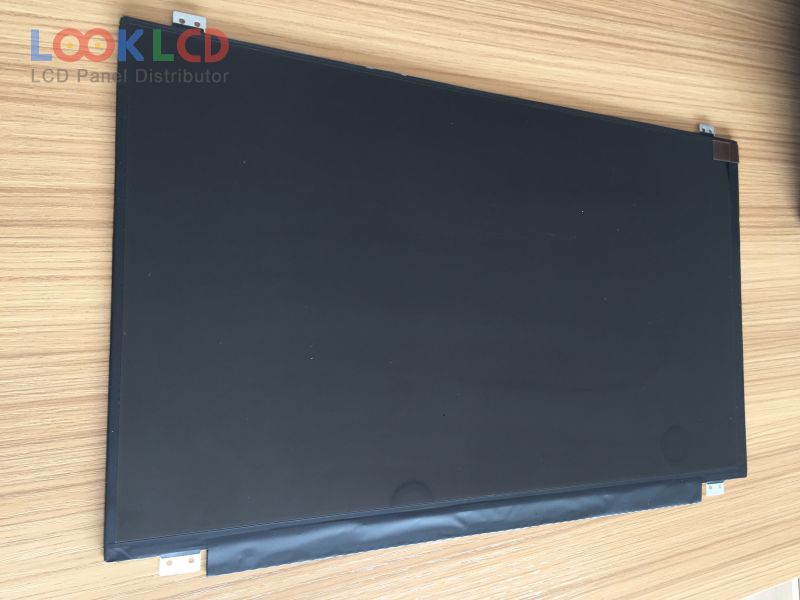

| PartNumber | NV156FHM-N41 |
| Brand | BOE |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | BOE |
| Panel Model | NV156FHM-N41 18 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | ADS, Normally Black, Transmissive |
| Active Area | 334.16×193.59 mm |
| Outline | 359.5×223.8×3 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Antiglare |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193145% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S6PWLEDEmbedded (LED Driver) |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| B156XTN03.1 | AUO | 15.6 | 1366×768 |
| B156XW04 V0 | AUO | 15.6 | 1366×768 |
| LP156WD1-TLA2 | LG Display | 15.6 | 1600×900 |
| LP156WH3-TLSA | LG Display | 15.6 | 1366×768 |
| LTN156AT01-V01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D03 | Samsung | 15.6 | 1366×768 |
| LTN156AT17-103 | Samsung | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
| B133EW07 V2 | AUO | 13.3 | 1280×800 |
| B156XW03 V0 | AUO | 15.6 | 1366×768 |
| LP140WH8-TLA1 | LG Display | 14.0 | 1366×768 |
| LP154WX5-TLC1 | LG Display | 15.4 | 1280×800 |
| LP156WHB-TPA1 | LG Display | 15.6 | 1366×768 |
| LTN141AT12-J01 | Samsung | 14.1 | 1280×800 |
| LTN156AT01-V01 | Samsung | 15.6 | 1366×768 |
| N141XC-L02 | Innolux | 14.1 | 1024×768 |
| N154C1-L01 | Innolux | 15.4 | 1440×900 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
