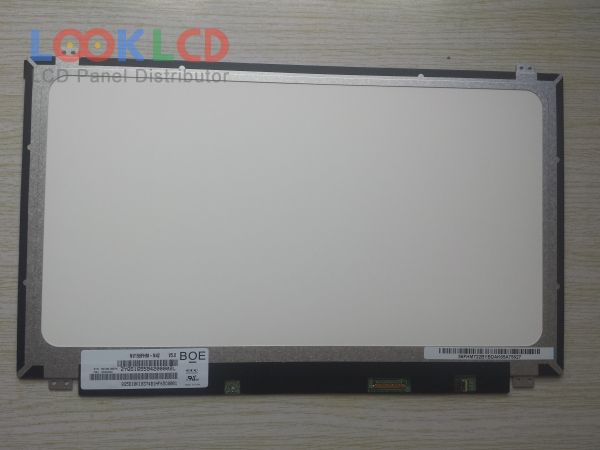

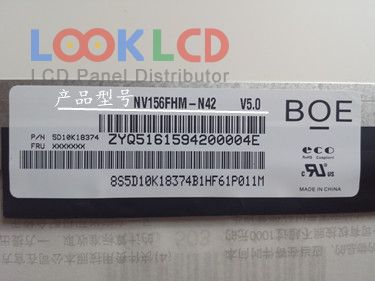

| PartNumber | NV156FHM-N42 |
| Brand | BOE |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | BOE |
| Panel Model | NV156FHM-N42 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | ADS, Normally Black, Transmissive |
| Active Area | 334.16×193.59 mm |
| Outline | 359.5×223.8×3.2 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Antiglare |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193147% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S5PWLEDEmbedded (LED Driver) |

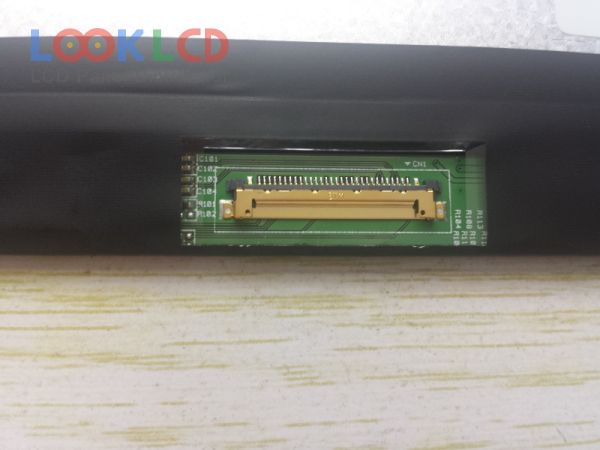

| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| B156XW04 V5 | AUO | 15.6 | 1366×768 |
| G156HTN01.0 | AUO | 15.6 | 1920×1080 |
| G156XW01 V0 | AUO | 15.6 | 1366×768 |
| LP156WD1-TLB2 | LG Display | 15.6 | 1600×900 |
| LP156WD1-TLB4 | LG Display | 15.6 | 1600×900 |
| LP156WF4-SLB7 | LG Display | 15.6 | 1920×1080 |
| LQ156D1JX03 | SHARP | 15.6 | 3840×2160 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
| B156XTK01.0 | AUO | 15.6 | 1366×768 |
| LP140WD2-TLD2 | LG Display | 14.0 | 1600×900 |
| LP140WH1-TLA1 | LG Display | 14.0 | 1366×768 |
| LQ108M1JW01 | SHARP | 10.8 | 1920×1080 |
| LTD111EWAS | TOSHIBA | 11.1 | 1366×768 |
| LTM11C307S | TOSHIBA | 11.3 | 1024×768 |
| LTN121AP03-002 | Samsung | 12.1 | 1280×800 |
| LTN156HL01 | Samsung | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
| N170C3-L01 | Innolux | 17.0 | 1440×900 |
