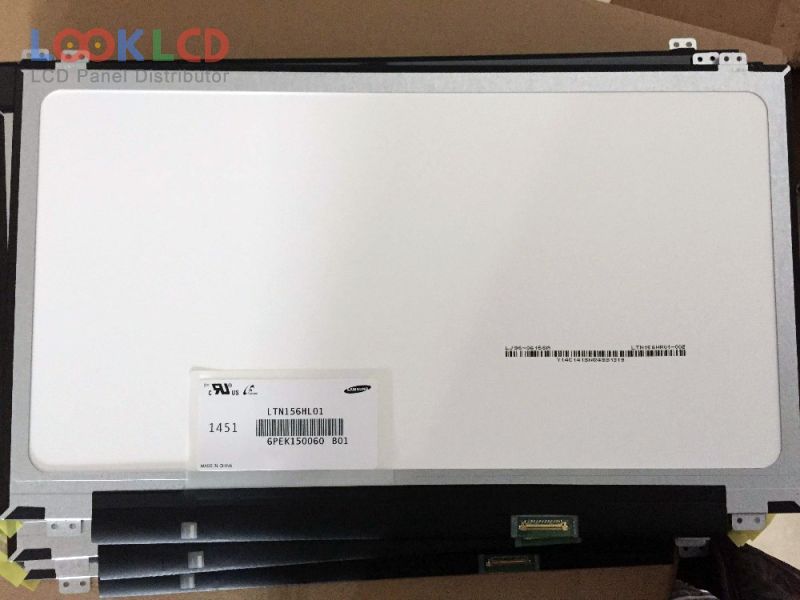

| PartNumber | LTN156HL01 |
| Brand | Samsung |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | SAMSUNG |
| Panel Model | LTN156HL01 18 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | PLS, Normally Black, Transmissive |
| Active Area | 344.16×193.59 mm |
| Outline | 359.5×223.8×3.2 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193172% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 10S5PWLEDEmbedded (LED Driver) |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Voltage | 3.3V (Typ.) |
