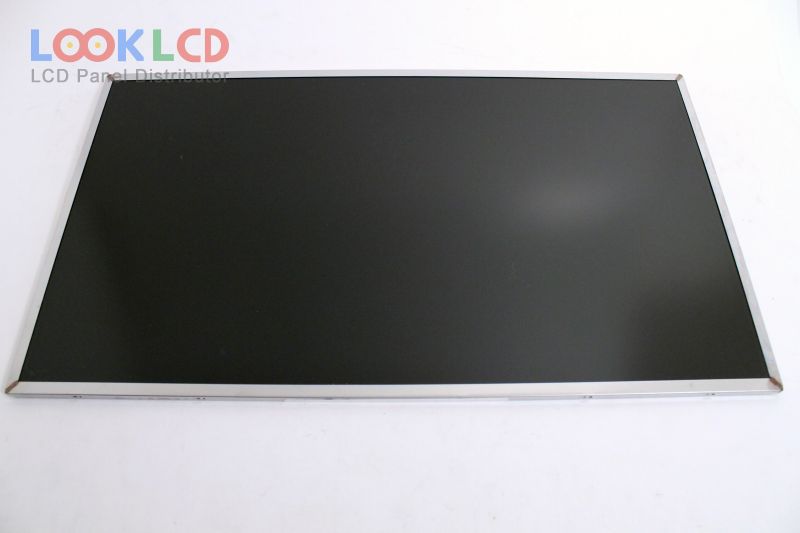

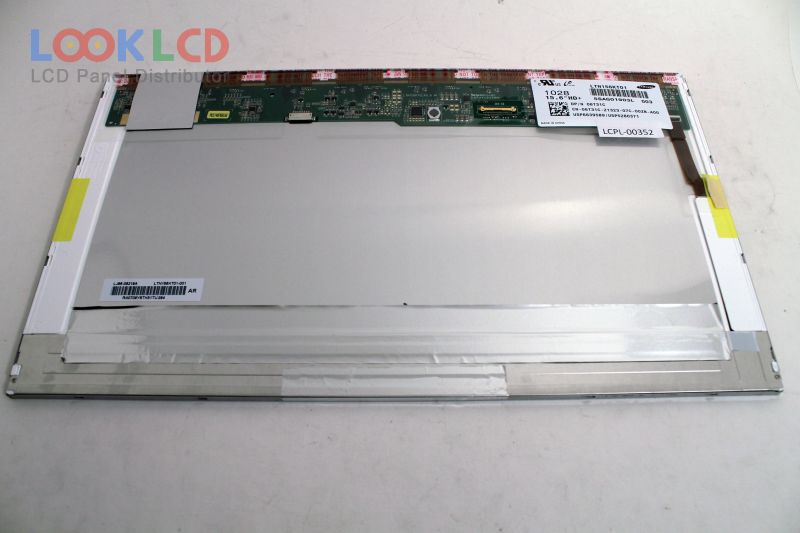

| PartNumber | LTN156KT01-003 |
| Brand | Samsung |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1600(RGB)×900 , HD+ |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | SAMSUNG |
| Panel Model | LTN156KT01-003 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 344.232×193.536 mm |
| Outline | 359.3×209.5×5.8 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 400:1 (Min.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 55/55/45/45 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S8PWLEDEmbedded (LED Driver) |
| Signal Interface | eDP (1 Lane), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| B156XTN03.1 | AUO | 15.6 | 1366×768 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| LP156WD1-TLB4 | LG Display | 15.6 | 1600×900 |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
| LTN156KT01-003 | Samsung | 15.6 | 1600×900 |
| LTN156KT01-W01 | Samsung | 15.6 | 1600×900 |
| LTN156KT02-301 | Samsung | 15.6 | 1600×900 |
| LTN156KT06-801 | Samsung | 15.6 | 1600×900 |
| N156O6-L04 | Innolux | 15.6 | 1600×900 |
| B101EW02 V1 | AUO | 10.1 | 1280×720 |
| B116XTT01.1 | AUO | 11.6 | 1366×768 |
| BT140GW01 V.5 | Innolux | 14.0 | 1366×768 |
| LP101WH1-TLA3 | LG Display | 10.1 | 1366×768 |
| LP121X05-A2 | LG Display | 12.1 | 1024×768 |
| LP173WF1-TLB3 | LG Display | 17.3 | 1920×1080 |
| LTD089EXWF | TOSHIBA | 8.9 | 1280×768 |
| LTD121EX1S | TOSHIBA | 12.1 | 1280×768 |
| LTN141AT06-001 | Samsung | 14.1 | 1280×800 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
