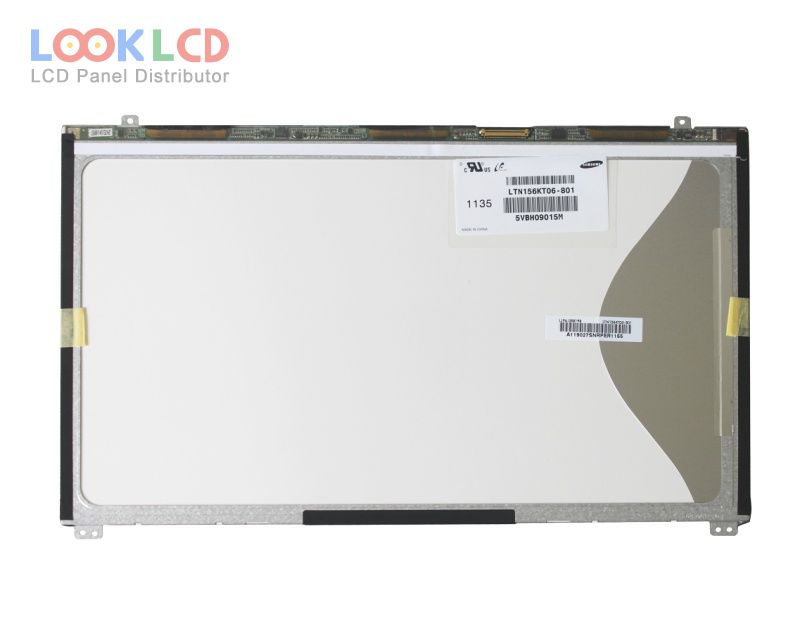

| PartNumber | LTN156KT06-801 |
| Brand | Samsung |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1600(RGB)×900 , HD+ |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN156KT06-801 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 344.16×193.59 mm |
| Outline | 359.3×222.45×4 mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 300:1 (Min.) |
| Display Colors | 16.2M (6-bit + FRC), CIE193145% |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 10S4PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
