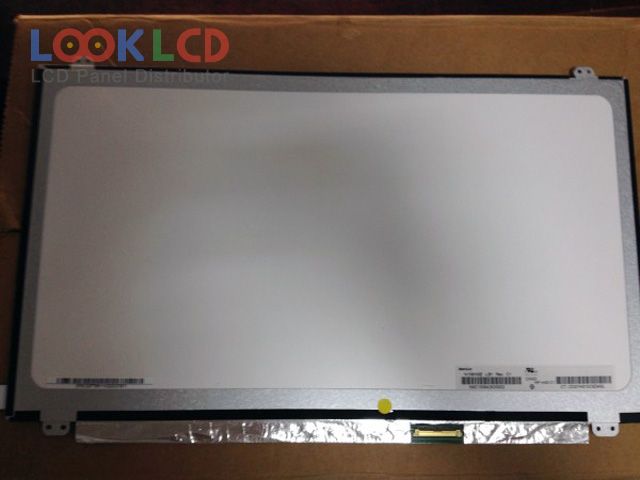

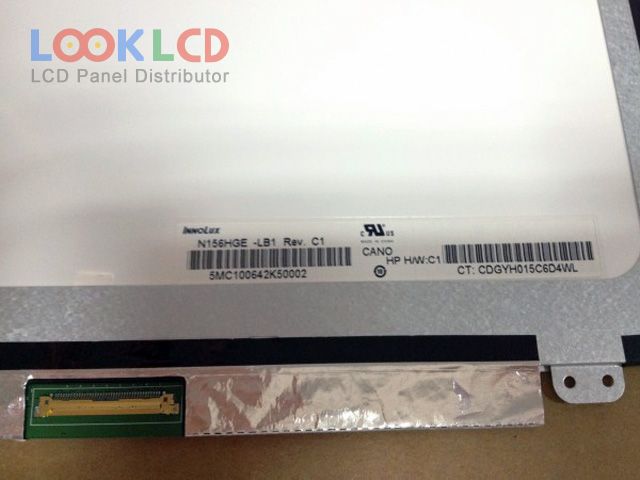

| PartNumber | N156HGE-LB1 |
| Brand | Innolux |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | N156HGE-LB1 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 344.16×193.59 mm |
| Outline | 359.5×224.3×3.2 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 3/8 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6 stringsWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| LP156WH3-TLQ1 | LG Display | 15.6 | 1366×768 |
| LQ156D1JX01 | SHARP | 15.6 | 3840×2160 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
| B141EW05 V0 | AUO | 14.1 | 1280×800 |
| B156XW03 V0 | AUO | 15.6 | 1366×768 |
| CLAA154WB08AN | CPT | 15.4 | 1280×800 |
| CLAA156WA12 | CPT | 15.6 | 1366×768 |
| LP101WH1-TLA2 | LG Display | 10.1 | 1366×768 |
| LP140WF6-SPB3 | LG Display | 14.0 | 1920×1080 |
| LQ150X1LAM3 | SHARP | 15.0 | 1024×768 |
| LQ164M1LG4B | SHARP | 16.4 | 1920×1080 |
| LTN140AT01-G03 | Samsung | 14.0 | 1366×768 |
| N156O6-L02 | Innolux | 15.6 | 1600×900 |
