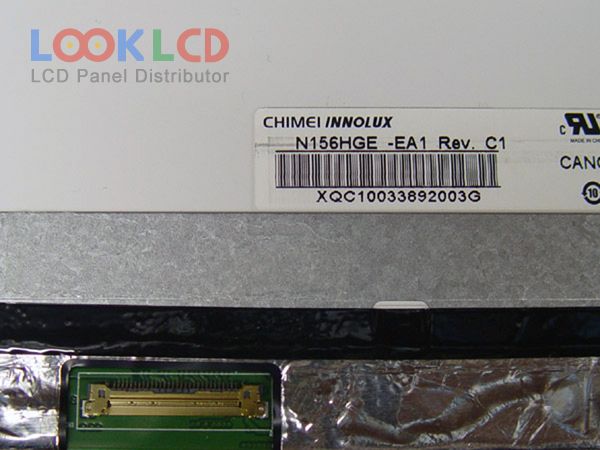

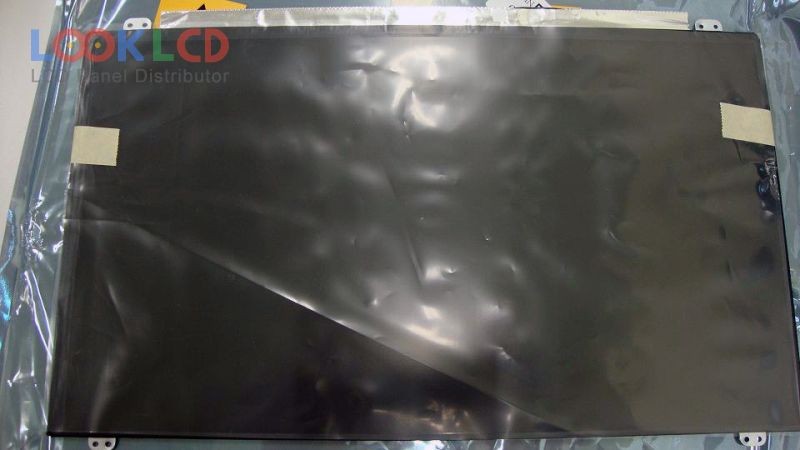

| PartNumber | N156HGE-EA1 |
| Brand | Innolux |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | INNOLUX |
| Panel Model | N156HGE-EA1 12 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 344.16×193.59 mm |
| Outline | 359.5×223.8×3.2 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 3/8 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6 stringsWLEDEmbedded (LED Driver) |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| LP156WF4-SLB2 | LG Display | 15.6 | 1920×1080 |
| N156BGE-L31 | Innolux | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
| B133XTN01.6 HW0A | AUO | 13.3 | 1366×768 |
| B133XW01 V7 | AUO | 13.3 | 1366×768 |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| LP141X3 | LG Display | 14.1 | 1024×768 |
| LP145WH1-TLA1 | LG Display | 14.5 | 1366×768 |
| LP150X09-A5K1 | LG Display | 15.0 | 1024×768 |
| LP154WT1-SJA1 | LG Display | 15.4 | 2880×1800 |
| LTN150PG-L03 | Samsung | 15.0 | 1400×1050 |
| M116NWR6 R0 | IVO | 11.6 | 1366×768 |
| N156BGE-E11 | Innolux | 15.6 | 1366×768 |
