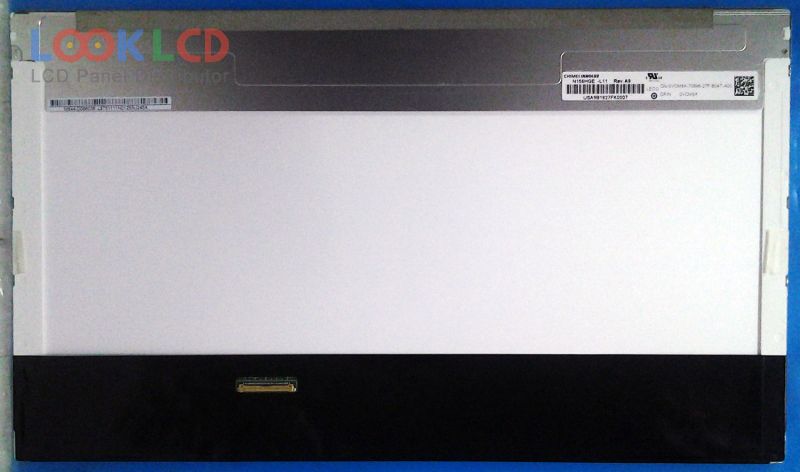

| PartNumber | N156HGE-L11 |
| Brand | Innolux |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |

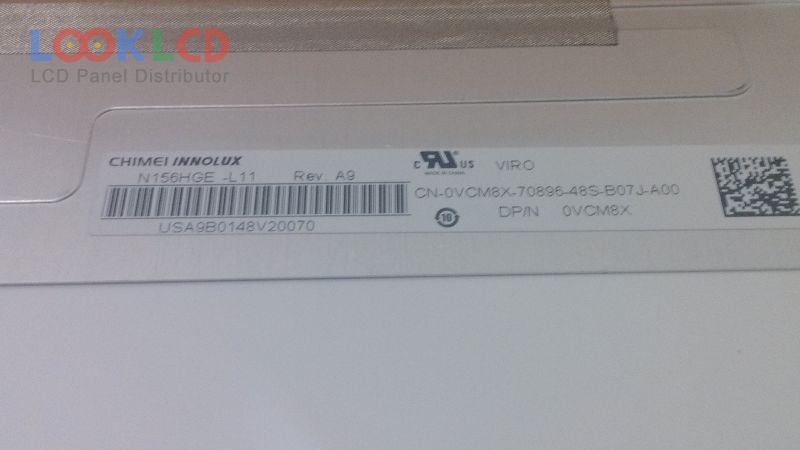

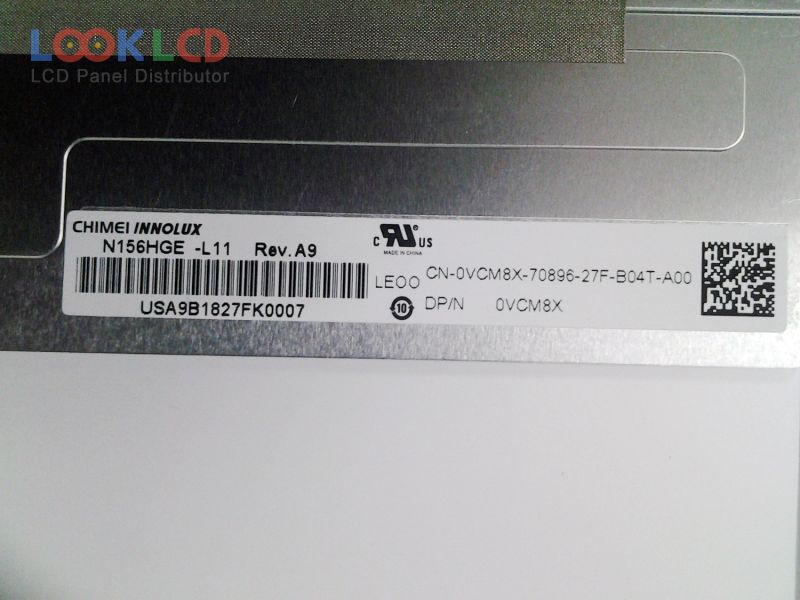

| Panel Brand | CHIMEI INNOLUX |
| Panel Model | N156HGE-L11 20 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 344.16×193.59 mm |
| Outline | 359.3×209.5×5.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 3/8 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6 stringsWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
