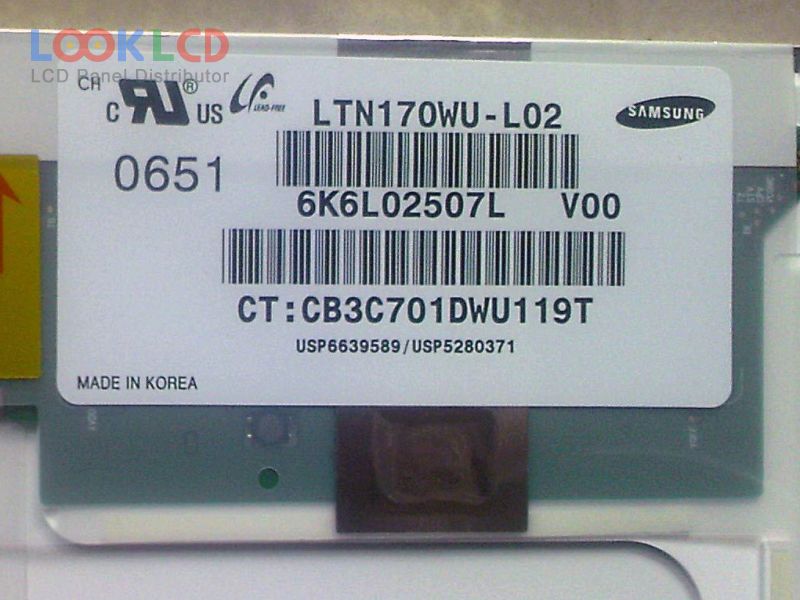

| PartNumber | LTN170WU-L02 |
| Brand | Samsung |
| Size | 17.0 |
| Application | NBPC |
| Resolution | 1920(RGB)×1200 , WUXGA |
| Composition | LCM |
| Brightness | 185 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN170WU-L02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 367.2×229.5 mm |
| Outline | 382.2×244.5×7 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Contrast Ratio | 300:1 (Min.) |
| Display Colors | 262K (6-bit) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 65/65/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
