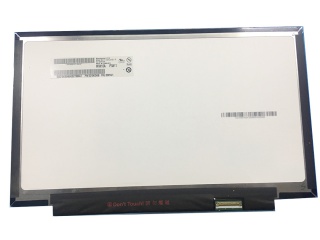

| PartNumber | B140QAN01.3 |
| Brand | AUO |
| Size | 14.0 |
| Application | Laptop |
| Resolution | 2560×1440 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | AUO |
| Screen Size | 14.0 inch |
| Pixel Number | 2560(RGB)×1440 (Quad-HD) 210PPI |
| Active Area(mm) | 309.35 × 174.01 (H×V) |
| Luminance | - |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Refresh Rate | 60Hz |
| Signal Type | eDP (4 Lanes) Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

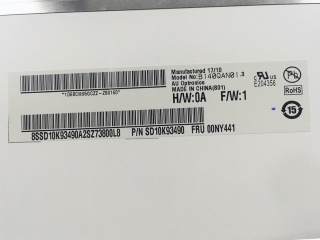

| Model Name | B140QAN01.3 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 320.4 × 198.6 × 2.6 (H×V×D) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Work Mode | AHVA, Normally Black, Transmissive |
| Used for | Laptop |
| Touchscreen | Without |
