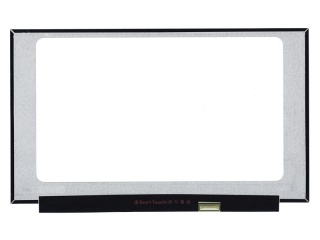

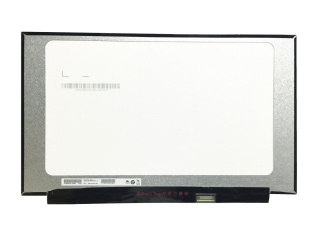

| PartNumber | B156HAN02.4 |
| Brand | AUO |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | AUO |
| Panel Size | 15.6" |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 350.66(W)×216.15(H) ×3.2(D) mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 262K 72% NTSC |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | B156HAN02.4 (AUO24ED) |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Antiglare |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
