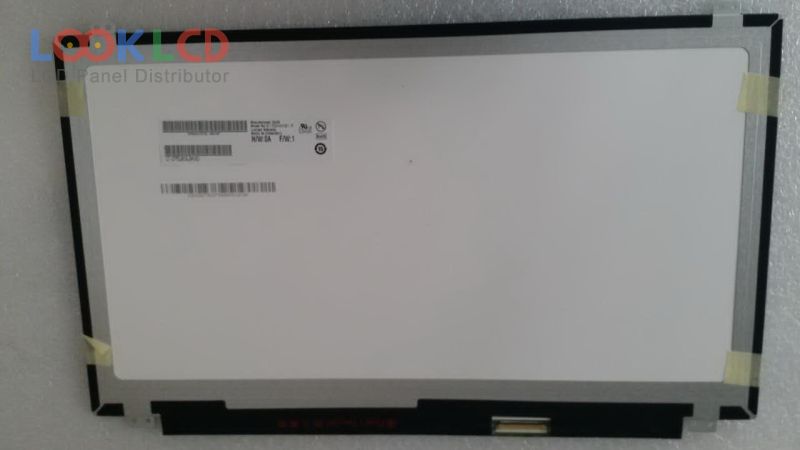

| PartNumber | B156HAK01.0 |
| Brand | AUO |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | AUO |
| Panel Model | B156HAK01.0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | AHVA, Normally Black, Transmissive |
| Active Area | 344.16×193.59 mm |
| Outline | 359.5×223.8×3.4 mm |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (2 Lanes), 40 pins |
| Input Voltage | 3.3V (Typ.) |
