| PartNumber | B156HAT01.0 |
| Brand | AUO |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 270 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | AUO |
| Panel Model | B156HAT01.0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | AHVA, Normally Black, Transmissive |
| Active Area | 344.16×193.59 mm |
| Outline | 366.38×225.31×5.4 mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface | Hard coating (7H) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193172% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |

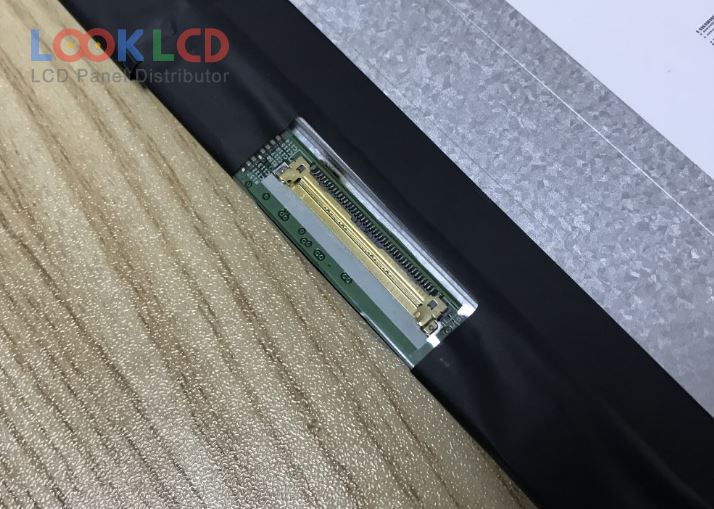

| Signal Interface | eDP (2 Lanes), 40 pins |
| Input Voltage | 3.3V (Typ.) |
