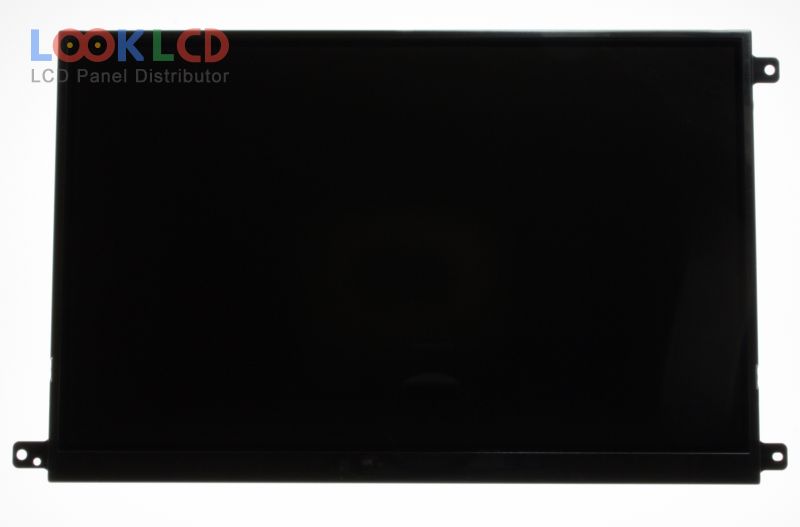

| PartNumber | LTD089EXWS |
| Brand | TOSHIBA |
| Size | 8.9 |
| Application | NBPC |
| Resolution | 1280(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 225 cd/m² (Typ.) |
| CR | 140:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | Toshiba Mobile Display |
| Panel Model | LTD089EXWS |
| Panel Type | LTPS TFT-LCD , LCM |
| Panel Size | 8.9 inch |
| Display Mode | TN, Normally White, Transflective |
| Active Area | 193.92×116.352 mm |
| Outline | 224×133×5.15 mm |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 140:1 (Typ.)(Transmissive) |
| Display Colors | 262K (6-bit) |
| Response Time | 80 (Max.)(Tr+Td) |
| Viewing Angle | |
| Frequency | 60Hz |
| Lamp Type | 7S6PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
