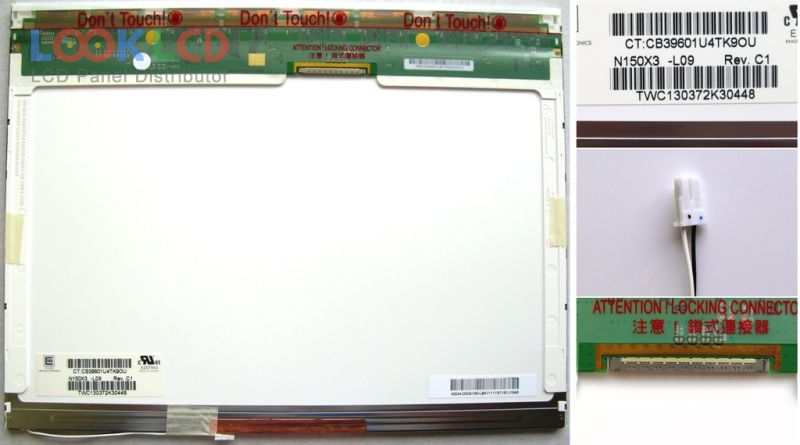

| PartNumber | N150X3-L09 |
| Brand | Innolux |
| Size | 15.0 |
| Application | NBPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 180 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | CMO |
| Panel Model | N150X3-L09 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 317.3×242×6 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| B141XG09 V0 | AUO | 14.1 | 1024×768 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LTD121EA3P | TOSHIBA | 12.1 | 1024×768 |
| LTD121KX5V | TOSHIBA | 12.1 | 1280×800 |
| LTM10C327F | TOSHIBA | 10.4 | 1024×768 |
| LTN141W1-L09-1 | Samsung | 14.1 | 1280×800 |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN156AT05-H07 | Samsung | 15.6 | 1366×768 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
